Ap.Setup is a web-based configuration utility for Wavlink Wi-Fi Range Extenders accessible at http://ap.setup or http://192.168.10.1.

Connect your computer or device to the Range Extender using an Ethernet cable or wirelessly.
Join the Wavlink Range Extender Wi-Fi network which is by default named Wavlink_XXXX.
Open a web browser and type http://ap.setup or http://192.168.10.1.

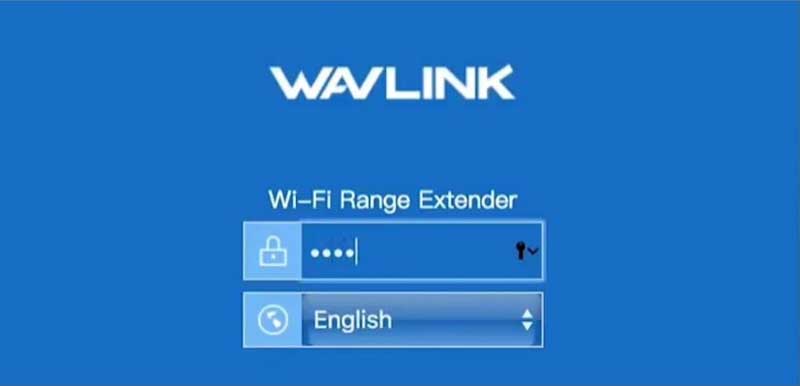

The login screen will appear. Enter the default password admin.
Navigate to the Wizard tab and click on the Repeater option.
A list of all available Wi-Fi networks nearby will be displayed on the screen.
Select the WiFi network whose range you want to extend. You can also add a WiFi network manually.
Enter the password of the selected Wi-Fi network.
Enter the SSID or Network Name for the new Extended WiFi network in the given field.
Click on the Connect button.
Wait for a few seconds as it finalizes creating the new extended WiFi network.
The device will reboot and the new WiFi network will be created successfully.

Alternatively, you can set up Wavlink Extender using WPS. Your router must support the WPS feature for this method to work.

Place both the extender and the router in the same room.
Locate the WPS button on the Wavlink Range Extender and press & hold it for 2-3 seconds until you see the light blinking.
Push the WPS button on your router.
The WPS lights on both the extender and the router will blink for 10-15 seconds, indicating that a connection is being established.
After the connection is successfully made, the WPS light on the router will stop blinking while the WPS light on the repeater will become stable.

If you cannot access ap.setup or 192.168.10.1, try these solutions:
